一、产品概述：

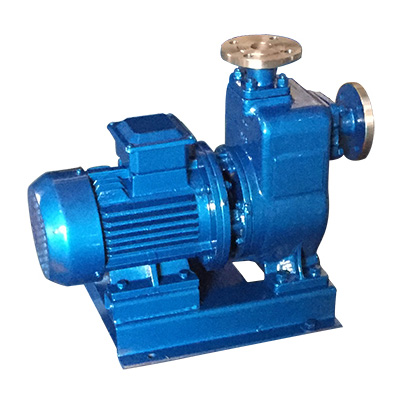

ZXL型直联式自吸泵，是我公司多年收集用户使用反馈后设计开发的新型自吸泵，可以视作ZX型自吸泵的派生款，在ZX泵的基础上取消了联轴器和轴承箱的结构，使得泵的长度尺寸变短，适合装泵空间比较局促的用户，另外，该泵因为泵轴与电机轴为一根加长轴，泵的同心度相当好。该泵的性能参数、使用方法与ZX型自吸泵均相同。
二、性能参数：
| 型号 | 吸程
M |
转速
r/min |
自吸性能
min/5m |
电机功率
KW |
| 25ZXL3.2-20 | 6.5 | 2900 | 1.9 | 0.75 |
| 25ZXL3.2-32 | 6.5 | 2900 | 1.8 | 1.5 |
| 32ZXL3.2-32 | 6.5 | 2900 | 1.9 | 1.5 |
| 32ZXL3.2-50 | 6.5 | 2900 | 1.7 | 3.0 |
| 40ZXL6.3-20 | 6.5 | 2900 | 1.9 | 1.1 |
| 40ZXL6.3-25 | 6.5 | 2900 | 1.8 | 2.2 |
| 40ZXL6.3-30 | 6.5 | 2900 | 1.8 | 3.0 |
| 40ZXL10-32 | 6.5 | 2900 | 1.5 | 4.0 |
| 40ZXL10-40 | 6.5 | 2900 | 1.7 | 5.5 |
| 40ZXL12.5-50 | 6.5 | 2900 | 2.4 | 1.5 |
| 50ZXL15-12 | 6.5 | 2900 | 1.9 | 2.2 |
| 50ZXL18-20 | 6.5 | 2900 | 1.5 | 3.0 |
| 50ZXL12.5-32 | 6.5 | 2900 | 1.5 | 4.0 |
| 50ZXL20-30 | 6.5 | 2900 | 1.7 | 4.0 |
| 50ZXL15-40 | 6.5 | 2900 | 1.4 | 5.5 |
| 50ZXL12.5-50 | 6.5 | 2900 | 1.3 | 7.5 |
| 50ZXL-20-75 | 6.5 | 2900 | 1.3 | 11.0 |
| 65ZXL30-15 | 6 | 2900 | 2 | 3.0 |
| 65ZXL20-30 | 6 | 2900 | 2 | 4.0 |
| 65ZXL25-32 | 6 | 2900 | 1.9 | 5.5 |
| 65ZXL25-50 | 6 | 2900 | 1.8 | 7.5 |
| 65ZXL25-75 | 6 | 2900 | 1.8 | 11.0 |
| 80ZXL35-13 | 6 | 2900 | 1.9 | 3.0 |
| 80ZXL43-17 | 6 | 2900 | 1.8 | 4.0 |
| 80ZXL40-22 | 6 | 2900 | 1.9 | 5.5 |
| 80ZXL50-32 | 6 | 2900 | 1.5 | 7.5 |
| 80ZXL60-55 | 6 | 2900 | 1.5 | 18.5 |
| 80ZXL60-70 | 6 | 2900 | 1.2 | 22.0 |
| 100ZXL100-20 | 5.5 | 2900 | 1.8 | 11.0 |
| 100ZXL100-30 | 5.5 | 2900 | 1.8 | 15.0 |
| 100ZXL100-40 | 6 | 2900 | 1.8 | 18.5 |
| 100ZXL100-65 | 6 | 2900 | 1.8 | 30.0 |
| 100ZXL70-80 | 6 | 2900 | 1.8 | 30.0 |
| 150ZXL170-45 | 6 | 2900 | 1.9 | 37.0 |
| 150ZXL170-55 | 5 | 2900 | 1.8 | 45.0 |
| 150ZXL150-80 | 5 | 2900 | 1.8 | 55.0 |
| 200ZXL400-32 | 5 | 1450 | 2 | 55.0 |
| 200ZXL280-96 | 5 | 1450 | 1.8 | 90.0 |
| 200ZXL350-65 | 5 | 1450 | 1.8 | 110.0 |
| 250ZXL550-32 | 5 | 1450 | 2 | 75.0 |
| 250ZXL400-50 | 5 | 1450 | 2 | 90.0 |
| 250ZXL450-55 | 5 | 1450 | 2 | 110.0 |
| 300ZXL600-32 | 5 | 1450 | 2 | 90.0 |
| 300ZXL500-50 | 5 | 1450 | 2 | 110.0 |
| 300ZXL550-55 | 5 | 1450 | 2 | 132.0 |
